Road Curtain Wall
It has excellent treatment efficiency as the filter area gets larger toward the center due to the multi-stage filter
media structure. Also, it lessened the possibility of blockage using the density of the multi-stage filter media, and
stage-by-stage processing is possible. It was designed such that in the event of overflow due to an increase in water
flow, drainage will be easy.
Name of Construction Method
Road Curtain Wall
Outline
Type of Facility

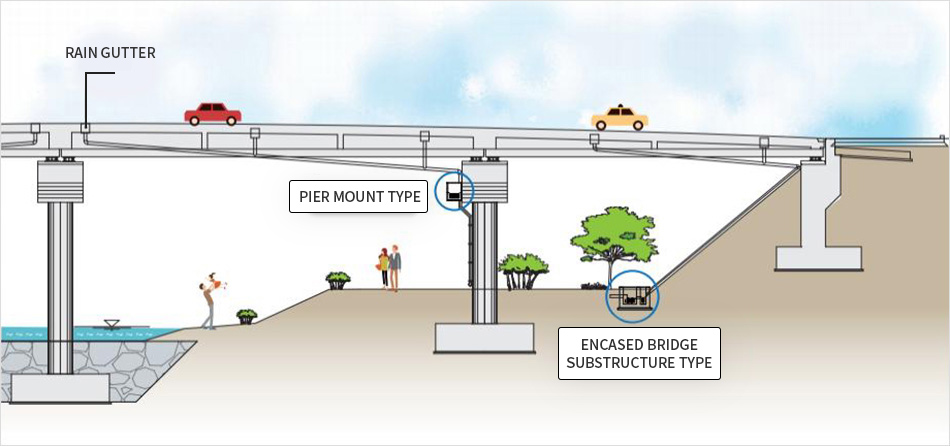

pier mount type / encased bridge substructure type
1
① Bridge rainwater inlet→ initial rainwater collection tank → fine screen → Curtain Wall(1st filter medium layer) → Curtain Wall(2nd filter medium layer) → discharge
2
Principle
- - The initial rainwater that is collected in the bridge rainwater inlet flows into the treatment device
- - Forms a radial flow of the moving water from the center to the edge
- -The water passes through the fine screen. In the 1st filter medium layer, the 1st impurity treatment takes place.
- -At the edge, where the velocity of the moving water decreases, the 2nd filter medium layer is installed/the contaminants are treated.
3
Maintenance :
- An easy maintenance system from which the garbage collecting net part can be separated.
Images of Facility Construction
Encased type
Bridge type
